THE EARTHQUAKE AND TSUNAMI OF 15 NOVEMBER 2006 IN THE KURIL ISLANDS

George Pararas-Carayannis

Introduction

On 15 November 2006, a great earthquake occurred off the coast near the Kuril Islands. In spite of the quake's large 8.3 magnitude, a relatively small tsunami was generated. The small tsunami was recorded or observed in Japan and at distant locations throughout the Pacific.

Date and Time of Occurrence

Wednesday, November 15, 2006 at 11:14:16 (UTC)_= Coordinated Universal Time (Local date and time at epicenter: Wednesday, November 15, 2006 at 10:14:16 PM )

Epicenter Location

Latitude: 46.616°N, Longitude: 153.224°E near the Kuril Islands, Russia USGS NEIC (WDCS-D)



Distances

The earthquake occurred:
245 miles east of the island of Etorofu (Japanese name) or Iturup (Russian name), which is about 110 miles northeast of Hokkaido, Japan.
440 km () ENE of Kuril'sk, Kuril Islands, 443 kilometers (about 277 miles east - northeast of Kuril'sk
500 km (310 miles) SSW of Severo-Kuril'sk, Kuril Islands, Russia and
1650 km (103 miles) northeast of Tokyo, Japan.


Magnitude - 8.3

Focal Depth - 28.5 km (17.7 miles)

Aftershocks - There were many aftershocks after the main quake. Four large aftershocks measured 6.5, 6.3, 6.0 and 6.2

Sesimic Activity in the Region - There was significant seismic activity in the region since September 2006

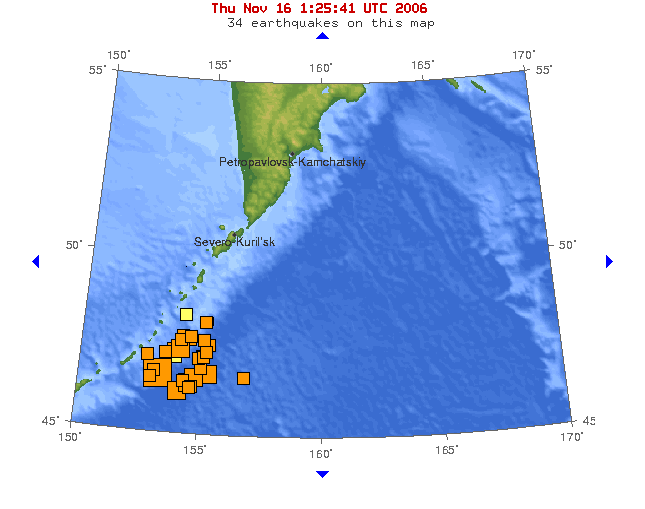

USGS Graphic of Earthquake Epicenter and Aftershocks



Seismicity of the Northern Japan/Kuril island Region

The Kuril islands and Japan is one of the world's most earthquake-prone regions in the world. _Around 20 per cent of the world's earthquakes take place in this region. The seismicity of Northern Japan is the result of a double seismic zone (DSZ), and compressional deep trench and outer rise events and by the magmatic effects of plumes or superplumes which, originally, may have hydrated the subducting oceanic lithosphere. Usually, shallow normal faulting occurs in the trench-outer rise region.

The volcanic Kuril island chain runs from the northern tip of Hokkaido to the southern tip of Russia's Kamchatka Peninsula. It is also a region of high seismic activity.

The area where the November 15, 2006 earthquake occurred had earthquakes over a magnitude of 8.0 in 1952, 1963, 1994 and 2003.

Damages and Death Toll from Earthquake and Tsunami


There were no reports of damage or injuries, according to NHK (Japan). At Hokkaido Prefecture all trains were stopped as a precautionary measure.

Tectonic Setting of the Northern Japan/Kuril Island Region

The overall tectonics of northeast Asia are very complicated. Whether the Sea of Okhotsk and the northern Japanese islands are part of the North American plate or of a separate Okhotsk plate has not been determined. On the Pacific Ocean side, earthquake slip vectors along the Kuril and Japan trenches are consistent with either a Pacific-North America or a Pacific-Okhotsk plate motion. We will assume that the Pacific-North America plate motion is better supported.


The Kuril island arc is located between the Kamchatka Peninsula and the Japanese island of Hokkaido. The Kuril Trench has been formed by the subduction of the Pacific plate under the North American plate. It extends from the offshore central area of Kamchatka to Hokkaido.


The plate tectonics of the Southern Kuril islands-Northern Hokkaido region are quite complex and very different than those along the southern portion of the Japanese Trench. The South Kuril Islands are part of the Kuril arc in the Okhotsk plate which has been colliding westward against the Northeast Japan arc, along the Hidaka Collision Zone (HCZ), where new continental crust is created by active arc-arc collision.


Deep seismic reflection studies (Ito, Kazuka @Abe, 2001) show the lower crust of the Kuril arc to be delaminated at a depth of about 23 km. These studies indicate that the upper half (above 23 km) - consisting of the earth's upper crust and the upper portion of lower crust of the Kuril arc - is thrusting over the Northeast Japan arc along the Hidaka Main Thrust (HMT). However, the lower half (below 23 km) - consisting of the lower portion of lower crust and upper mantle material - is descending downward.

Ocean bottom morphology of Kamchatka, the Kuril Island Trench, Sakhalin Island, and the Sea of Okhotsk.

As a result of such kinematic processes, the wedge of the Northeast Japan arc is intruded into the delaminated Kuril arc, as the Pacific plate is subducting northward beneath both of the above mentioned structures, thus continuing the arc-arc collision (and continental crust production). The complex, seismo- tectonic kinematic process of this region has been named "Delamination-wedge-subduction system" - which may apply also to other areas where active arc-arc collision and concurrent subduction take place.


Accordingly, Hokkaido - Japan's northernmost island - extends northeast into Kuril Islands and is composed of multiple compressed island arcs. The northern half of Honshu (north of Tokyo), which is Japan's main island, represents a typical mature island arc, while the southern half of the island represents also a typical mature island arc, as the Philippine Sea plate subducts below the Eurasian plate.


On the western side, the Sea of Japan is a complex basin between Japan and the Korea/Okhotsk Sea Basin. It represents another subplate with apparent rotational movement as it interacts against the Okhotsk plate, along the inland sea boundary of the Hidaka Collision Zone (HCZ).


Sakhalin island, north of Hokkaido, which separates the Sea of Japan from the Sea of Okhotsk, is probably the result of transpressional tectonics along the North America-Eurasia boundary.

THE TSUNAMI OF 15 NOVEMBER 2006

A relatively small tsunami was generated which was observed and recorded at distant locations in the Pacific. Based on the earthquake aftershock distribution, the tsunami generating area was estimated to be approximately 120 by 150 kilometers.

Observations and Records of the Tsunami

JAPAN - Hokkaido Island

Nemuro - A small tsunami wave of about 40cm (16 inches ) was recorded at 9:29 p.m. at the port of Nemuro on Japan's northernmost island of Hokkaido.

Kushiro - 25cm/0.8ft. An 8-inch wave hit the nearby port city of Kushiro. A series of three smaller waves followed.
Hanasaki - 30cm/1.0ft

ALASKA - Shemya - 20cm/0.65ft , Amchitka - 8cm/0.25ft

Tsunami Watches, Warnings and Advisories

Fourteen minutes after the quake the Japan's Meteorological Agency (JMA) issued a tsunami warning for the eastern Pacific coast and the Okhotsk Sea coast of Hokkaido. JMA later downgraded its warning for Hokkaido to an advisory.

The Pacific Tsunami Warning Center issued a tsunami warning which extended form eastern Russia to Guam. The tsunami warning area also included Taiwan, the islands of Marcus, Wake and Midway, and the North Marianas and Marshall islands. A tsunami watch was declared for the Philippines, Indonesia, Kiribati, Nauru, Papua New Guinea, the Solomon Islands, Tuvalu and Vietnam. A tsunami advisory was issued for Hawaii.


The Alaska Tsunami Warning Center, issued a tsunami warning for the Alaskan coast from Sand Point to Attu, and a tsunami watch for the parts of Alaska, British Columbia and Washington state from Cape Flattery, Washington to Sand Point, Alaska.


Based on the small tsunami that was detected, all warnings, watches and advisories were canceled for the entire Pacific and Alaska.


Recent Tsunamis Generated along the South Kuril Trench


The Earthquakes and Tsunamis of 13 and 19 October 1963


A pair of large magnitude earthquakes occurred in the same general area of the Kuril Islands on the 13 and 19 of October 1963. The 13 October earthquake had an Ms = 8.1 and an Mw = 8.5 while the 19 October earthquake had an Ms = 7.2 and an Mw = 7.8. Both had maximum reported runups of 0.4 meters in Hawaii.

The Earthquake and Tsunami of October 4, 1994


Kuril Islands - Most affected by the damaging waves of this tsunami were the islands of Shikotan, Kunashir and Iturup, in the South Kurils. According to reports, Shikotan Island was one of the hardest-hit areas by both the earthquake and the tsunami. Following the disaster, a team of international scientists made measurements of tsunami runup heights at Shikotan, Iturup, Kunashir, and the small islands between Shikotan and Hokkaido (Yeh et al, 1995). Maximum runup on Shikotan Island was reported to be approximately 10 m (about 30 feet) high.

Epicenter of the 1994 Earthquake - Tsunami Generation Area


Since the South Kuril Island region has a long history of many large, local tsunamis, the people in this region were fairly well prepared. This probably accounts for the low death toll for the October 4, 1994 tsunami - in spite of its high runup (Pararas-Carayannis, 1995).


Japan - The areas most affected by the 1994 tsunami were Kushiro, Hachinohe, Chichijima and Hanasaki, on the island of Hokkaido. One person was killed and 140 more were injured. Runup measurements along the Hokkaido coast were carried out by a team of scientists from Japan's Tohoku University (Takahashi and Shuto, 1994). Maximum tsunami runup in Nemuro was approximately 1.8 m.


Hawaiian Islands - The tsunami waves were not damaging in Hawaii but were readily recorded by tide gauges. The highest recorded wave at Midway Island was 0.54 meters (peak to trough) and in Kahului, Maui, 0.8 meters (peak to trough).

Past Earthquakes and Tsunamis in the Northern Japan/Kuril Island Region (since 1963)

Review of the historic record indicates that the following tsunamis were generated in recent years near Kamtchatka, the Kuril Islands, Northern Japan and the Sea of Japan:


October 13, 1963 - Kuril Islands (MS=8.1, I=2.5) - Urup tsunami.
June 16, 1964 - Sea of Japan - (MS=7.5) - Niigata tsunami (26 dead).
August 11, 1969 - Kuril Islands (MS=7.8, I=2.0) - Shikotan tsunamis.
November 22, 1969 - Kamchatka (MS=7.7, I =3.0) - Ozernoy tsunami.
May 25, 1983 - Northern part of Sea of Japan (MS= 7.7) - (104 dead).
January 15, 1993 - Japan / Hokkaido (MS=7.8) - Kushiro tsunami, one dead.
July 12, 1993 - Japan Sea (MS=7.7, I=3.0) - Okushiri tsunami ( Maximum Wave Height 30.2m) (more than 200 dead).
October 4, 1994 - South Kuril Islands/Northern Japan Hokkaido(MS=8.1, I=2.6) - Shikotan tsunami (8 dead in Kuril Islands).

Tsunamigenic Potential of the Hokkaido/Kuril Island Region. Assessment of the November 15, 2006 Tsunami - Why no Larger Pacific-wide Tsunami was Generated?

It would have been expected that the large magnitude earthquake (M 8.3) of November 15, 2006 would have generated a much greater, Pacific-wide tsunami. The geometry of subduction and tectonic interactions along volcanic arcs are different than those of other tectonic collision boundaries - thus unique in tsunami generation. Pacific plate subduction along the southern Kuril Trench results in mega continental tension gashes that are parallel to the direction of convergence (Gelabert et al. 2001). Also the tension along convergent boundaries results in steep dipping faults that may be normal, strike-slip or thrust faults.

To understand the dynamics of tsunami generation by large earthquakes in this region, we must look at the subduction processes and the mechanics of arc collision that create volcanic arcs such as the Kuril Islands and extensional back-arc basins - such as the Sea of Okhotsk.

Subduction and Arc-Arc Collision - Subduction along the Japan and Kuril Trenches has been primarily responsible for many large historical earthquakes and catastrophic tsunamis on the Pacific side of Northern Japan and the South and Central Kuril island region (see section above about the tectonic setting). Most of the tsunamis had destructive near field effects but limited far field impact. The only recent exception may be the 1952 Kamtchatka earthquake - which occurred much further north - and generated a tsunami with significant far field, Pacific-wide, impact.


The Pacific plate converges into northeastern Asia (the Okhotsk subplate which is part of the North American plate, separated from the Eurasian plate by the Hidaka Collision Zone (HCZ)). The rate of tectonic convergence along the Kamchatka, Kuril and Japan trenches is estimated at about 8-9 m per century - which is a very high. Hokkaido, which extends northeast into Kuril Islands is composed of multiple compressed island arcs.


In the past two centuries this fast rate of subduction has triggered several large earthquakes with magnitudes of up to 8 or more along the southern Kuril trench, near the island of Hokkaido. However, these historical earthquakes have ruptured segments of the trench and of the forearc region that have been only in the range of 100-200 km long. Thus, these must be considered as characteristic of most plate-boundary earthquakes for this volcanic arc region. The Kuril Island Earthquakes of 13 October 1963 (Ms = 8.1; Mw = 8.5) the 19 October 1963 (Ms = 7.2; Mw = 7.8) and the October 4, 1994, did generate destructive local tsunamis but the far field effects were not significant.


The November 15, 2006 tsunami - like those of 1994 and of 1963 - occurred on the Pacific side boundary of the smaller tectonic subplate which includes the Sea of Okhotsk and possibly a portion of the northern part of the Sea of Japan (Pararas-Carayannis, 1995).


Apparently, the grinding motion of the North Pacific Plate against this subplate, results in large earthquakes - such as those of 1963 and 1994 - but apparently with less vertical subduction and more rotational movement. For example, the 1994 quake resulted in only about 50 cm of land subsidence but in extensive lateral movement at Shikotan Island. A greater amount of subsidence would have been expected, given the earthquake's large magnitude.
Also, the October 4, 1994 earthquake generated a destructive local tsunami with runup height of up to 10 meters in the South Kuril islands but the far field effects were not significant. Maximum runup along the coast of Hokkaido, Japan, was 1.8 meters (at Nemuro). Maximum runup in the Hawaiian islands was 0.8 meters (at Kahului, Maui).


The Effect of Rupture Length - The length of earthquake rupture as inferred from the distribution of aftershocks - is a major factor in the tsunami generation mechanism and on whether there will be significant far field tsunami impact.
The crustal area in the Southern Kuril Islands and Northern Hokkaido, along the northern part of the Japan and Kuril Trenches, appears to be highly fractured. As described previously, the South Kuril Islands are part of the Kuril arc in the Okhotsk plate which has been also colliding westward against the Northeast Japan arc, along the Hidaka Collision Zone (HCZ), where new continental crust is created by active arc-arc collision.


Crustal displacements appear to be occurring along these boundaries of highly fractured subplates that may not be longer than 250-300 km and probably much less. Also, it appears that these fractured smaller plates limit the extent of crustal displacements and, therefore, the energy imparted for tsunami generation.

The majority of earthquakes in the central and southern Kuril islands and the Hokkaido region - even those of large magnitude - usually involve single segment ruptures along the Kuril trench - segments that are truncated by oblique asperities. Such earthquakes with relatively short ruptures do not generate very large Pacific-wide tsunamis. Most of the destructive effects of such tsunamis are local in the Kuril Islands and northern Hokkaido region.

Crustal Delamination and Transpressional Effects - If delamination occurs below 23 km - as postulated (Ito, Kazuka @Abe, 2001) - such process would also account for the smaller tsunami as there is less vertical movement of crustal material below 23 km and more lateral movement above. As it was pointed out the 1994 earthquake resulted in only about 50 cm of land subsidence but extensive lateral movement at Shikotan Island.

The earthquake of November 15, 2006 had a focal depth of 28.5 km. Given the short rupture of the earthquake and the focal depth below the delamination boundary of 23 km, this would explain why no major tsunami was generated that had significant far field effects. Most of the earthquake's energy went into lateral transpressional movement along this boundary of subduction - filling the void caused by Kuril arc migration by pushing the subducting (and denser) plate horizontally towards the extensional basin (Sea of Okhotsk) - as in 1994.

Can this region generate tsunamis that can have significant far field destructive effects (Pacific-wide)?


Based on the stratigraphic distribution of deposits of historical tsunamis found in Japan, it has been inferred that unusually large tsunamis have occurred about every 500 years on the average in this region. Therefore, we can conclude that the rupture of two or more segments along the Japan Trench or the central and southern Kuril Trench is possible, but that the resulting earthquakes and tsunamis (that may have a far field impact) are extremely rare but may occur every 500 years or more.

REFERENCES AND FURTHER READING

The following are selected references for further reading on the kinematics of tectonic interactions along the Japanese and Kuril Island arcs which historically have produced numerous destructive tsunamis.


GELABERT, B., SABAT, F., RODRIGUEZ-PEREA, A. , and FORNS, J., 2001. ON THE ORIGIN OF ARCUATE FOLDED BELTS AND BACK-ARC BASINS, GSA Annual Meeting, November 5-8, 2001 Session No. 137

Iida, K., D. C. Cox, and G. Pararas-Carayannis (1967). Preliminary catalog of tsunamis occurring in the Pacific Ocean, Hawaii Institute of Geophysics Report 67-10, Univ. of Hawaii, 274pp.1962


Nakamura, K., V. Renard, J. Angelier, J. Azema, J. Bourgois, C. Deplus, K. Fujioka, Y. Hamano, P. Huchon, H. Kinoshita, P. Labaume, Y. Ogawa, T. Seno, A. Takeuchi, M. Tanahashi, A. Uchiyama, and J. L. Vigneresse. Oblique and near collision subduction, Sagami and Suruga troughs -Preliminary results of French-Japanese 1984 KAIKO cruise, leg 2 Earth Planet. Sci. Lett. 83 229-242 1987


Ogawa, Y., T. Seno, H. Akiyoshi, H. Tokuyama, K. Fujioka, and H. Taniguchi, 1989. Structure and development of the Sagami Trough and off-Boso triple junction. Tectonophysics 160 135-150, 1989


Kawakatsu, H., and T. Seno, 1983. Triple seismic zone and the regional variation of seismicity along the northern Honshu arc. J. Geophys. Res. 88 4215-4230 1983


Pararas-Carayannis G. 1983, The Earthquake and Tsunami of 26 May 1983 in the Sea of Japan
http://drgeorgepc.com/Tsunami1983Japan.html



Pararas-Carayannis G. 1994, The Earthquake and Tsunami of The Earthquake and Tsunami of October 4, 1994 in the Kuril Islands

http://drgeorgepc.com/Tsunami1994RussiaKurils.html

Pararas-Carayannis G. The November 4,1952 Kamchatka Earthquake and Tsunami

http://drgeorgepc.com/Tsunami1952.html

Seno, T. and D. G. Gonzalez. 1987. Faulting caused by earthquakes beneath the outer slope of the Japan Trench. J. Phys. Earth 35 381-407 1987


Seno, T. 1999. Is northern Honshu a microplate? Tectonophysics 115 177-196 1985 __Seno, T. Syntheses of the regional stress fields of the Japanese islands The Island Arc 8 66-79 1999


Seno, T., and Y. Yamanaka. 1998. Arc stresses determined by slabs: Implications for mechanisms of back-arc spreading Geopys. Res. Lett. 25 3227-3230 1998


Seno, T., and Y. Yamanaka. 1996. Double seismic zones, compressional deep trench - outer rise events and superplumes in Subduction Top to Bottom, edited by G. E. Bebout, D. W. Scholl, S. H. Kirby, and J. P. Platt Geophys. Monogr. 96 347-355 1996


Seno, T., T. Sakurai, and S. Stein, 1996. Can the Okhotsk plate be discriminated from the North American plate? J. Geophys. Res. 101 11305-11315 1996


Seno, T., and B. Pongsawat, 1981. A triple-planed structure of seismicity and earthquake mechanisms at the subduction zone off Miyagi Prefecture, northern Honshu, Japan Earth Planet. Sci. Lett. 55 25-36, 1981


Seno, T., and G. C. Kroeger. 1983 A reexamination of earthquakes previously thought to have occurred within the slab between the trench axis and double seismic zone, northern Honshu J. Phys. Earth 31 195-216 1983


Seno, T., and T. Takano, 1989. Seismotectonics at the trench-trench-trench triple junction off central Honshu Pure Appl. Geophys. 129 27-40, 1989


Seno, T., T. Sakurai, and S. Stein, 1996. Can the Okhotsk plate be discriminated from the North American plate? J. Geophys. Res. 101 11305-11315, 1996


Seno, T., and Y. Yamanaka, 1996. Double seismic zones, compressional deep trench - outer rise events and superplumes in Subduction Top to Bottom, edited by G. E. Bebout, D. W. Scholl, S. H. Kirby, and J. P. Platt Geophys. Monogr. 96 347-355, 1996


Seno, T. 1999. Earthquake Research Institute, University of Tokyo, Bunkyo-ku, Tokyo 113-0032, Japan The Island Arc, 8, 66-79, 1999


Tanioka, Y., and K. Satake (1996). Fault parameters of the 1896 Sanriku tsunami earthquake estimated from tsunami numerical modeling, Geophys. Res. Letters, 23-13,1549-1552.

Walker Daniel A., 2005. OCEAN-WIDE TSUNAMIS, MAGNITUDE THRESHOLDS, AND 1946 TYPE EVENTS. Science of Tsunami Hazards, Vol. 23, No. 2, page 4 (2005)

Watanabe, T., T. Koyaguchi, and T. Seno. Tectonics stress controls on ascent and emplacement of magmas J. Volcanol. Geotherm. Res. 91 65-78, 1999

BIBLIOGRAPHY ON THE SEISMOTECTONICS OF THE KURIL ISLAND/HOKKAIDO REGION



Aver£yanova V. N. (1975). Depth seismotectonics of island arcs. Moscow, 1975, in Russian.

Belyaevsky N. A., Rodnikov A. G. (1972).
Crustal structure of the island arcs and Far Eastern Seas. Article 1. Island Arcs. International Geology Review, v. 14, No. 2, 1972.


Bikenina S. K., Anosov G. I., Argentov V. V. and Sergeev K. F. (1987).
The Earth crust structure of the southern part of Okhotsk Sea according to seismic data. Nauka, Moscow, 1987, 87 pp., in Russian.

Bogdanov N. A. (1988).
Deep basin tectonics of margin seas. Nedra, Moscow, 1988, 221 pp., in Russian.


Boldyrev S. A., Gainanov A. G. and Stroev P. A. (1993).
Density inhomogeneities of the lithosphere and dynamics of the North-West Pacific active belt. In: Marine Gravity Investigations (P.A.Stroev, ed.). National Geophysical Committee, Moscow, 1993, 106-119, in Russian with English abstract.


Burmin V. Yu., Savrina L. A. and Kugaenko Yu. V. (1992).
Velocity section of the upper mantle of the Okhotsk Sea region with using deep foci earthquakes data. Volcanology and Seismology, No. 2, 1992, 64-75, in Russian.

Deep seismic sounding of the Earth crust of Sakhalin-Hokkaido seaside zone.(1971)
Eds. S. M. Zverev and Y. V. Tulina. Nauka, Moscow, 1971, 286 pp., in Russian.


Fedotov S. A., Chernyshev S. D., Chernysheva G. V. and Vikulin A. V.
Determination of the boundaries of earthquakes sources with M>=7 3/4, peculiarities of seismic cycle and long-term seismic prediction for the Kurile-Kamchatka arc. Volcanology and Seismology, No. 6, 1980, 52-67, In Russian.

Frolova T. I., Perchuk L. L. and Burikova I. A.
Magmatism and transformation of the Earth crust of the active margins. Nauka, Moscow, 1989, 261 pp., in Russian.

Geology-geophysical atlas of the Kuril-Kamchatka island system. Deep structure of the North-East Japan Arc and its relationship to seismic and volcanic activity. Eds. K.F.Sergeev and M.L.Krasny. Institute of Marine Geology and Geophysics, 1987, 40 pp.

Hilde T. W. C., Uyeda S. and Kroenke L.
Evolution of the Western Pacific and its Margin.
Tectonophysics, v. 38, No. 1/2, 1977, 145-165.

Honza, E., and K. Tamaki, The Bonin Arc, in The Ocean Basins and Margins, edited by A. E. M. Nairn et al., Vol. 7, pp. 459-502, Plenum Co., New York, 1985.

Isezaki N., Yosui M. and Uyeda S.
Possible spreading centers in the Japan Sea.
In: Geological-geophysical researches of the transition zone from the Asiatic continent to the Pacific Ocean. Sov. radio, Moscow, 1976, 72-80.

Jolivet, L., and K. Tamaki, Neogene kinematics in the Japan Sea region and volcanic activity of the NE-Japan arc, in Proc. ODP, Sci. Results, edited by Tamaki, K., Suyehiro, K., Allan, J., McWilliams, M., et al., Vol. 127/128, Pt.2, pp. 1311-1331, College Station, TX (Ocean Drilling TAMU), 1992.


Jolivet, L., K. Tamaki, and M. Fournier,
Japan Sea, opening history and mechanism: a synthesis, J. Geophys. Res., 99, 22237-22259, 1994.

Khain V. E., Lomize M. G.
Geotectonics with elements of geodynamics. Moscow State University, 1995, 480 pp, in Russian.

Kimura, G., and K. Tamaki, Tectonic framework of the Kuril Arc since its initiation, in Formation of Active Ocean Margins, edited by N. Nasu et al., pp. 641-676, Terrapub., Tokyo, 1985.

Kimura, G., and K. Tamaki, Collision, rotation, and back-arc spreading: the case of the Okhotsk and Japan Seas, Tectonics, 5, 389-401, 1986.

Kobayashi, K., M. Nakanishi, K. Tamaki, and Y. Ogawa, Outer slope faulting associated with the western Kuril and Japan trenches, Geophys. J. Int., 134, 356-372, 1998.

Krasny M. L.
Geophysical fields and deep structure of the Okhotsk-Kuril region.
Dalnevost. Otdel. Akad. Nauk USSR, Vladivostok, 1990, 161 pp., in Russian.

Lyapishev A. M., Sychev P. M. and Semenov V. Yu.
Structure of electroconductivity of the upper mantle of Kuril Basin of Okhotsk Sea. Tihookeanskaya Geologia, No. 4, 1987, 45-50, in Russian.

Oscorbin L. S. Sakhalin seismicity.
In: Seismic Zoning of Sakhalin (S.L.Solov'ev, ed.).
SakhKNII, Vladivostok, 1977, in Russian.

Pisciotto, K., K. Tamaki et al., Exploring the Japan Sea, Geotimes, 1989.

Rodnikov A. G.
About tectonics of Iturup Island. Vestnik MGU, Geology, No. 6, 1968, 92-94, in Russian.

Rodnikov A. G.
Island arcs of the western part of the Pacific Ocean. Nauka, Moscow, 1979, 152 pp., in Russian.

Rodnikov A. G., Khain V. E.
On the trend in evolution of the Earth's crust in the north-western part of the Pacific mobile belt. In: Island Arcs and Marginal Sea (S.Asano and G.Udintsev, eds.). Tokai University Press, 1971, 65-76, in Japanese.

Rodnikov A. G., Rodnikova R. D.
The Japan - Sakhalin Island Arc. Nauka, Moscow, 1974, 74 pp., in Russian.

Rodnikov A. G., Rodkin M. V., Ermakov B. V. et al.
The Okhotsk Sea Geotraverse.
27th General Assembly IASPEI, Wellington, NZ., 1994, S8.51.

Rogozhin E. A.
Focal mechanism of the Neftegorsk (Sakhalin) earthquake of May 27(28), 1995. Geotectonics, No. 2, 1996, 45-53, in Russian.

Semenov R. M., Pavlenov V. A. and Charahinov V. V.
Catastrophic earthquake at the north Sakhalin (short seismogeological characteristic). Dokl. Akad. Nauk SSSR, v. 351, No. 4, 1996, 535-538, in Russian.

Semenova G. I., Zorina Yu. G., Kunin N. Ya. and Rodnikov A. G.
Upper mantle zoning of the Pacific with using geophysical investigation data. In: Structure and Dynamic of Transition Zones from Continent to Ocean. (V.V.Belousov, M.E.Artem'ev and A.G.Rodnikov, eds.). Nauka, Moscow, 1986, 57-65, in Russian.

Sergeev K. F.
Tectonics of Kuril island system. Nauka, Moscow, 1976, 239 pp., in Russian.

Snegovskoi S. S.
Reflection method investigations and tectonics of the southern part of Okhotsk Sea and adjacent frontier area of the Pacific. Nauka, Novosibirsk, 1974, 86 pp., in Russian.

Soloviev S. L., Oscorbin L. S. and Ferchev M. D.
Earthquakes at Sakhalin. Nauka, Moscow, 1967, 178 pp., in Russian.

Structure of the Okhotsk Sea floor. Ed. V. V. Beloussov, Nauka, Moscow, 1981, 176 pp., in Russian.

Structure of the floor of the north-western Pacific. Eds. Yu. M. Pushcharovsky and Yu. P. Neprochnov. Nauka, Moscow, 1984, 231 pp., in Russian.

Structure and dynamics of the lithosphere and asthenosphere of the Okhotsk Sea region. Eds. A. G. Rodnikov, I. K. Tuezov and V. V. Charahinov. National Geophysical Committee, Nauka, Moscow, 1996, 340 pp., in Russian.

Sychev P. M.
Deep and surface tectonics processes of the north-western Pacific mobil belt. Nauka, Moscow, 1979, 208 pp., in Russian.

Tamaki, K., Two modes of back-arc spreading, Geology, 13, 475-478, 1985.


Tamaki, K., and E. Honza,
Incipient subduction and obduction along the eastern margin of the Japan Sea, Tectonophys., 119, 381-406, 1985.

Tamaki, K., Geological structure of the Japan Sea and its tectonic implications, Bull. Geol. Surv. Japan, 39, 269-365, 1988.

Tamaki, K., and E. Honza, Global tectonics and formation of marginal basins: a role of the western Pacific, Episodes, 14, 224-230, 1991.

Tamaki, K., Opening tectonics of the Japan Sea, in Backarc Basins: Tectonics and Magmatism, edited by B. Taylor, pp. 407-420, Plenum Press, New York, 1995.

Tamaki, K., and I. I. Bersenev,
Morphology of the Japan Sea, in Gelogy and Geophysics of the Japan Sea (Japan-USSR Monograph Series, Vol 1), edited by N. Isezaki, I. I. Bersenev, K. Tamaki, B. Ya. Karp, and E. P. Lelikov, pp. 35-39, Terra Scientific Publishing Company (Terrapub), 1996.


Tamaki, K., and N. Isezaki,
Tectonic synthesis of the Japan Sea based on the collaboration of the Japan-USSR Monograph Project, in Gelogy and Geophysics of the Japan Sea (Japan-USSR Monograph Series, Vol 1), edited by N. Isezaki, I. I. Bersenev, K. Tamaki, B. Ya. Karp, and E. P. Lelikov, pp. 483-487, Terra Scientific Publishing Company (Terrapub), 1996.


Tarakanov R. Z.
Structure of the focal zone of the Kuril-Kamchatka island arc.
In: The Earth Crust of the Island Arc and Far East Seas (N. A. Beliaevsky, A. G. Gainanov and A. G. Rodnikov, eds.), Nauka, Moscow, 1972, 215-234, in Russian.

Tectonics of the north-western Pacific Ocean. Ed. A. G. Rodnikov. Nauka, Moscow, 1983, 120 pp., in Russian.

Tuezov I. K.
The lithosphere of transition zone from Asia to Pacific. Nauka, Novosibirsk, 1975, 232 pp., in Russian.

Vasilenko N. F., Bogdanova E. D.
Horizontal movements of the Earth surface in zone of the central Sakhalin deep fault. Pacific Geology, No. 3, 1986, 45-49, in Russian.

Vasiliev B. I.
The main features of the geological structure of North-West part of Pacific. Vladivostok, 1988, 192 pp., in Russian.

Zlobin T. K.
Lithosphere sructure in the region of the Iturup Island from seismic data.
Pacific Geology, No. 3, 1989, 33-41, in Russian.

Zlobin T. K., Zlobina L. M.
The Earth crust structure of the Kuril Island system. Pacific Geology, No. 6, 1991, 24-35, in Russian.

Return to

Links to other Pages

The Big One - The Next Great California Earthquake (A new edition of the book)

Now available from Amazon, Barnes and Noble and other major bookstores. A signed by the author copy can be also ordered by contacting directly by email Aston Forbes Press.

Other Miscellaneous Non-technical Writings

(©) Copyright 1963-2007 George Pararas-Carayannis / all rights reserved / Information on this site is for viewing and personal information only - protected by copyright. Any unauthorized use or reproduction of material from this site without written permission is prohibited.
Web Site Created By Dr. George Pararas-Carayannis / Copyright © 2000. All Rights Reserved

Template Courtesy of "Budget Office & Facility Supply"

 THANK YOU FOR VISITING
